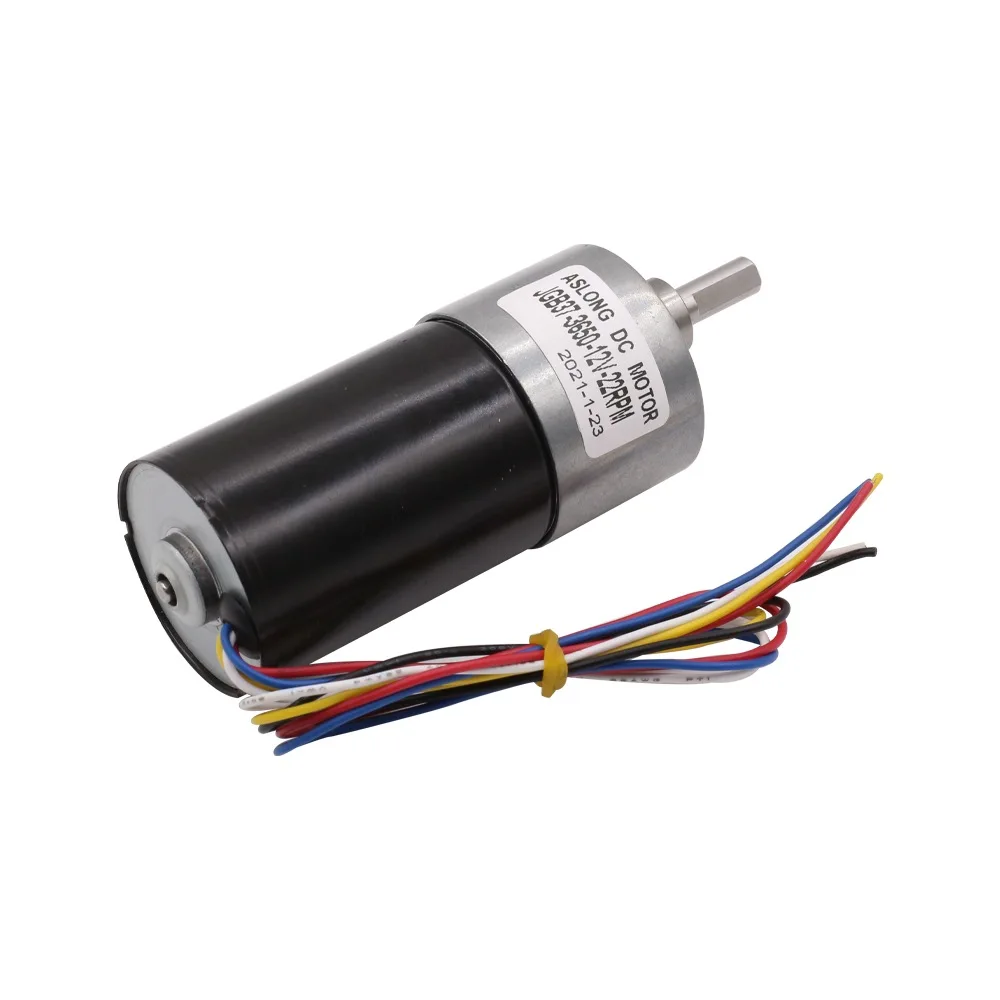

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Name: BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home
Brand: ASLONG
Price: 1 USD

Wholesale BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home from china suppliers

Brand Name : ASLONG

Model Number : JGB37-3650

Certification : CE,RoHs

Place of Origin : China

MOQ : 2 Pieces

Price : Negeotiation

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 5000 Pieces Per day

Delivery Time : 5-8 working days

Packaging Details : on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)

Voltage : 24V

No-load speed : 9-1280RPM

No-load Current : 0.5-0.6A

Stall Current : 5A

Stall torque : 6-72KG.cm

Product name : JGB37-3650

Usage : Home Appliance , Electric Bicycle, Boat, Fan,Car

Construction : Permanent Magnet

Contact Now

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Brushless motor 2 buyers 36mm low cost high quality JGB37-3650 BLDC dc for SMART HOME

Product Description

General specifications:

1-1 Voltage: 24V

1-2 No-load speed:9-1280RPM

1-3 No-load Current: 0.5-0.6A

1-4 Stall Current: 5A

1-5 Stall torque: 6-72KG.cm

The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction.

Voltage	No-load speed	No-load Current	Stall Current	Stall torque
24V	9-1280RPM	0.5-0.6A	5A	6-72KG.cm

Datasheet:

JGB37-3650		No load		On load				Stall
Workable	Rated	Speed	current	speed	current	Torque	Output Power	Torque	Current	Ratio	Size	Weight
Range	Volt.V	rpm	ma	rpm	ma	kg .cm	W	kg.cm	A	1:00	mm	unit:g
12-30V	24	1280	170	960	600	1.5	25	6	5	6.25	19	260
12-30V	24	800	170	600	600	1.8	25	7	5	10	19	260
12-30V	24	425	170	319	600	3	25	12	5	18.8	22	265
12-30V	24	266	170	200	600	6	25	24	5	30	22	265
12-30V	24	142	170	107	550	11	25	44	5	56	24	265
12-30V	24	88	170	66	550	18	25	72	5	90	24	265
12-30V	24	60	170	45	550	26	25	Forbidden	5	131	26.5	270
12-30V	24	47	170	35	500	33	25	Forbidden	5	168	26.5	270
12-30V	24	29	170	22	500	50	25	Forbidden	5	270	26.5	270
12-30V	24	15	170	11	500	60	25	Forbidden	5	506	29	280
12-30V	24	9	170	7	500	60	25	Forbidden	5	810	29	280

Dimension:

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

The following is a description of the quality materials and structures of this motor.

1. Using high quality gears, the gears are heat-treated and wear-resistant to ensure the life of the motor

2. D-axis

3. The inside of the motor uses a neodymium iron boron magnetic core with very high saturation magnetic strengthening and excellent magnetic properties.

4. The length of the line 280mm

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
